Pipe Collar Flange KG/KG2000
X,XX EURexcl. VAT
Delivery time 2-3 working days
Free shipping on orders over 50.00 EUR1
Pipe Ø OD
Product information
Article group Pipe Collar Flange KG/KG2000
Item number CRA22600
EAN / GTIN 4260182348420
Designation Pipe Collar Flange DN 110
Product description For the subsequent sealing of installed PVC or PP pipes; dimensionally stable and pressure-resistant solid wall material; with oil- and bitumen-resistant film flange (approximately 15cm all around) for integration into bitumen sealing, e.g., KMB; according to DIN 18533 W1-E and W2.1-E
Dimensioning
B | Inner diameter 110 mm
Specification
Pressure density 1.5 bar / 21.8 PSI
Weight 0.3 kg
Testing / Approval
MPA
Resistances
UV resistant
Suitable for soil
Flush-mounting suited
Material
EPDM
Ethylene Propylene Diene Rubber (EPDM) is a synthetic rubber. The saturated backbone structure results in properties such as high UV and weather resistance, as well as high thermal resistance.
KG2000 pipe (PP)
Polypropylene (PP) is a partially crystalline thermoplastic and belongs to the group of polyolefins. PP has high stiffness, hardness, and strength and is resistant to almost all organic solvents and fats as well as most acids and alkalis.
Oil- and bitumen-resistant foil flange
Oil- and bitumen-resistant foil flange (circumferential 15 cm), to seal up wall penetrations in accordance with DIN 18195-T9
Gas, odor, and water tight
The seal is both gas, odor, and water tight.
UV, ozone and weather resistant.
The product is UV and ozone resistant as well as suitable for all weather conditions.
Suitable for flush-mounting.
The product is suitable for concealed installation (flush-mounting).
Suitable for soil.
The product is suitable for installation in the ground.
Digital product and function overview.
This product has a scannable QR code to call up all relevant product information and functions.
Problem
Step 1/3
Step 2/3
Step 3/3

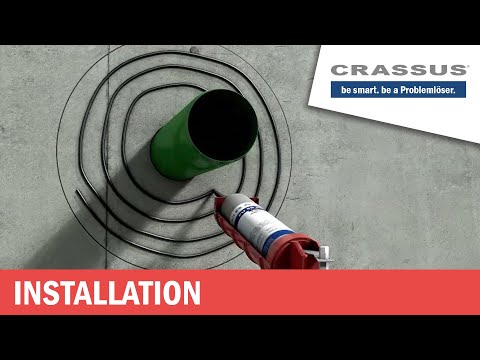

Installation
Downloads for the product
Data Sheet
Tender texts for planners
